Small Condenser Unit Variable Frequency RV-FTZ72-485L-E

$180.00 $220.00

In Stock

Small condenser unit

SKU Code: RV-FTZ72-485L-E
Model: RV-FTZ72-485L-E
Categories: Refrigeration, Small Condenser Unit

Add to Wish List

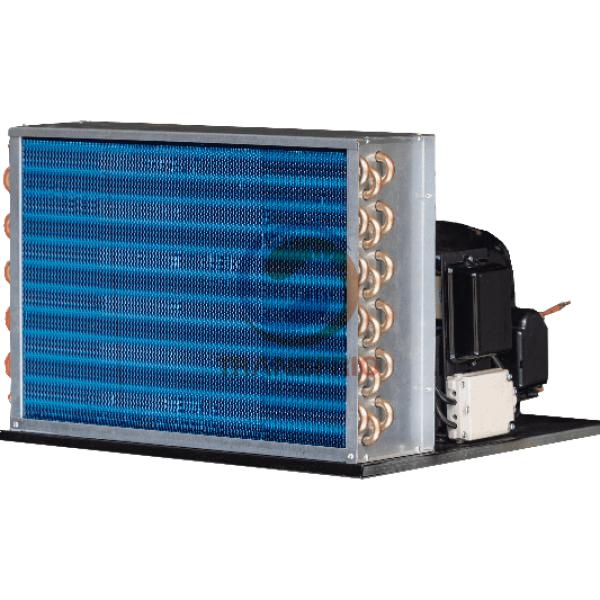

Small condenser unit

A Small Condenser Unit is designed and used for small or medium refrigeration equipment, especially for these where space and efficiency are critical. It mainly consists compressor, condenser, condenser fan, and dry filter. Available in both variable and constant frequency series, Transfrio small condenser units offer flexibility, allowing customers to choose models based on their specific needs.

To better help customers solving the different technical difficulties encoutered in their refrigeration applications, Transfrio also provides customized services for complete set of small refrigeration system. Whether it's air-cooled system, or coil-cooled system, or system with extremely strict requirements for size, Transfrio can always help to design the perfectly matched refrigeration system for our customers.

1. Components

A complete set of mini refrigeration system mainly includes: compressor, condenser, filter drier, evaporater, temperature controller, capillary tubes, etc..

2. Features

Transfrio small condenser units are with following technical features:

Compact Size: ideal for tight spaces in vending machines, medical storage cabinets, and small commercial refrigerators. This compactness allows for efficient use of space without compromising cooling performance.
Energy Efficiency: these units often incorporate advanced features such as inverter-driven compressors, which adjust their speed based on the cooling demand. Inverter technology can enhance energy efficiency by at least 30% compared to traditional constant frequency compressors.
Versatility and Customization: small condenser units can operate on different refrigerants (eg. R404A, R600A, R134A...) and maintain a low back pressure (LBP), making it suitable for various household or commercial uses. Furthermore, these units can be customized to meet specific requirements, such as varying cooling capacities and integration with different evaporators, catering to diverse industry needs.

3. Application

Transfrio small condenser units are widely applied to any equipment where require high efficiency refrigeration and compact structure, such as:

vacuum freeze dryers
vending machine
battery thermostat cabinet
mini fridge
medical storage cabinet
wine cabinet

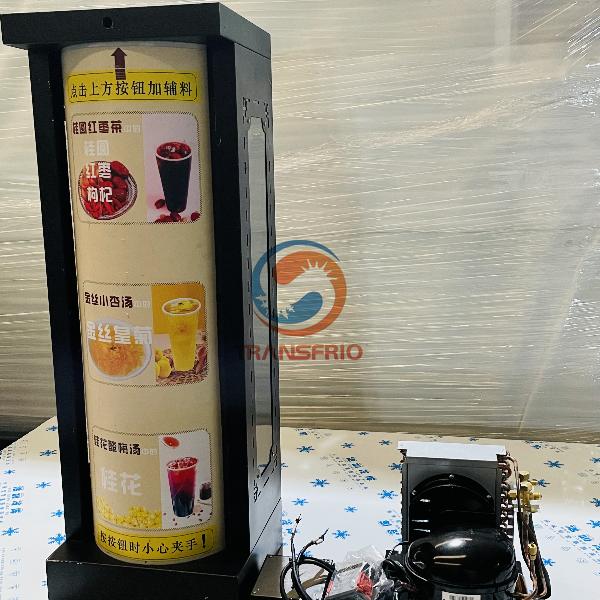

4. Our Cases

5. Model List

Small Condenser Unit (Standard Model)
Series	Configuration
	Model	Input Power W	Cooling Capacity W	Voltage/ Frequency	Refrigerant	Application Type	Dimension (mm)
Constant Frequency	RC-2.1DVF-48L-Y	60	48	115V/60Hz	R134a	L/MBP	300189150
	RC-70DLF-138L-L	79	138	110-120V/60Hz	R600a	LBP	300260195
	RC-70DL-470L-S	380	470	220V/50Hz 110-120V/60Hz	R404a R410a	LBP	355273203
	RC-90DL-550L-S	408	550	220V/50Hz 115V/60Hz	R404a	LBP	380290260
	RC-12S-643L-S	443	643	220V/50Hz	R404a	LBP	443433289
	RC-18S-913L-S	593	913	220V/50Hz	R404a	LBP	480510340
	RC-10HS-1448LM-E	297 / 416	326 / 1448	220-240V/50Hz	R290	L/MBP	443433289
	RC-21HS-2200LH-Y	375 / 846	450 / 2200	220-240V/50Hz	R134a	L/HBP	480510340
Variable Frequency	RV-35N-95L-Y	60-93	55-95	DC12/24V/ 2000-3500rpm	R134a	LBP	300260195
	RV-45N-130L-Y	78-115	82-130	DC12/24V/ 2000-3500rpm	R134a	LBP	300260195
	RV-9YL-210L-L	36-116	65-210	220-240V/ 1200-4500rpm	R600a	LBP	300260195
	RV-ETL90N-230L-L	33-133	63-230	220-240V/50/60Hz 1200-4500rpm	R600a	LBP	300295200
	RV-ATZ72-290L-Y	50-187	80-290	220-240V/50/60Hz 1200-4500rpm	R134a	LBP	300280250
	RV-FTZ72-485L-E	115-312	190-485	220-240V/50/60Hz 1200-4500rpm	R290	L/MBP	420370300
	Notes: 1. Test conditions: Evap.temp. -23.3°C for L/MBP, Evap. temp. 7.2°C for HBP; Condensing temp.45°C. 2. Please provide specific technical requirements for customized models.
